1.8T 20V Ultimate Forged Engine Kit

1.8T 20V Ultimate Forged Engine Kit

SKU: 2218t26

IMPORTANT NOTE***    CVP Built engine packages are supplied by Bartek Motorsport in Germany. We provide a discount if purchasing through us over bartek however these high value items are shown without VAT. This means you will have to pay 20% VAT to UK customs on arrivival. It makes no difference to the total price it just means the VAT stays within the UK and doesnt go to Bartek!



If you have any questions at all please drop us a message!



Heres what Bartek have to say about this package;



Whenever you think more is not possible, think of this kit. Because here we have once again outdone ourselves. The ULTIMATE Kit is not called that for nothing! Here you have everything you need for the best performance with your 1.8T: A perfectly matched combination of forged pistons, connecting rods, connecting rod screws, connecting rod bearings, head gasket and stud bolt.



Visually alone, this set can do it all: Our BAR-TEK® X-shank steel connecting rods. Matching forged pistons from Wiseco. All other parts are of the highest quality as well: ARP connecting rod bolts, connecting rod bearings from ACL, MLS head gasket from Cometic and ARP stud bolt for main bearing race and cylinder head.



That's really all you need. Not only do these components work in perfect harmony with each other, but you'll save money in the kit compared to buying them individually!



Extreme kit for extreme performance

Our kit is of course not only visually eye-catching, but is also designed for extreme performance. With this kit you can reach up to 800 hp with your 1.8T without any worries! This is due to the fact that we only pack the best components in our Ultimate Kit and these are also optimally matched to each other.



The Wiseco piston in this kit arecoated for extreme performance on the  shirt. At the same time they are still quite light. This combo is of course perfect for motorsports. With the piston comes everything you need for installation: bolts, rings and clips.



Also extremely light and at the same time very stable are our X-shaft steel conrods. Thanks to their surface, they can withstand high pressure loads without any problems. They are machined from solid and have an additional bore for better piston pin lubrication (Rifle Drilled). They also come with everything you need for mounting: the matching ARP2000 expansion bolts and mounting paste.



Features of the high-performancepiston:

  • Extremely lightweight due to special alloy
  • Reinforced for maximum performance
  • Also for series bore 81 mm
  • 20 mm piston pin
  • Installation and drilling dimensions are enclosed

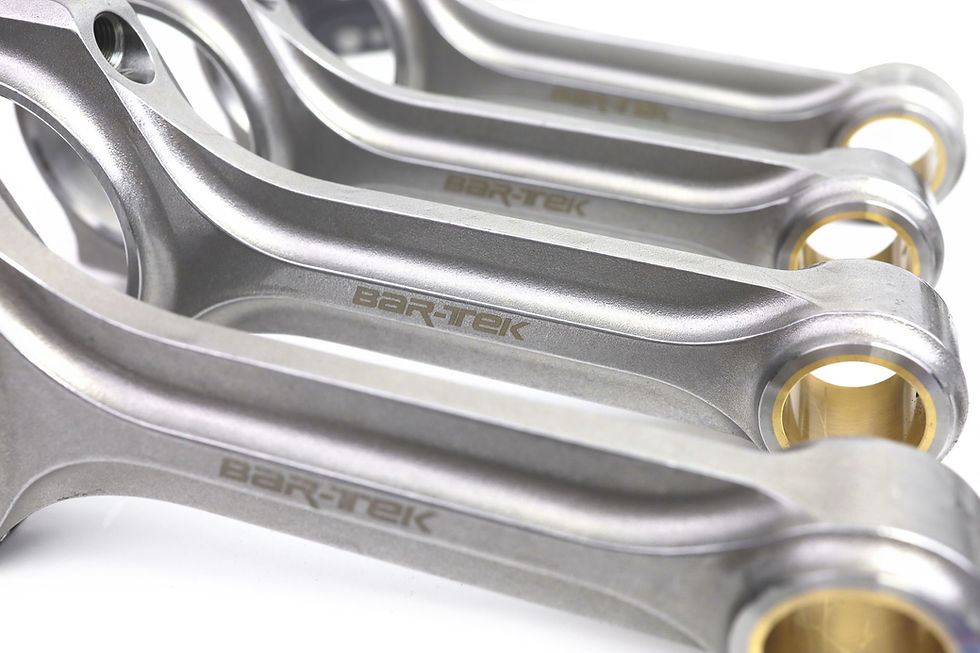

Features of the X-Beam conrods:

  • high strength milled from solid
  • suitable for extreme power increases of 800 HP
  • extremely light and very stable
  • Magnaflux inspected
  • 4 pieces per set
  • Dimensions: 144 x 21 mm
  • Weight per conrod with screws only about 600 grams
  • With oil riser hole for piston pin lubrication (Rifle Drilled)
  • precisely angled and tested in our factory
  • WITH ARP 2000 expansion screws 3/8"



Features of ACL connecting rod bearings:

  • Racing bearing, ACL Race
  • extra coated
  • extra bore for the piston pin



Features of APR stud bolt for the block and head:

  • A MUST for all engines that run with increased charge pressure!
  • The most important bolts from the world market leader ARP.
  • The stud bolt are made of 8740 chromoly steel and have rounded threads.
  • Up to 40% stronger stretch steel than stock bolts.
  • All ARP high performance bolt kits include ARP paste.
  • Additional ARP bolts for the bearing blocks



Features of the Cometic MLS head gasket

  • Multi-layer metal head gasket
  • 1,14mm for an optimal compression of 8,5:1
  • SHIPPING INFO

    All CVP Orders placed within the UK include free DPD delivery! All orders placed outside of the UK please give us a message for a qoute!

£1,600.00 Regular Price
£1,440.00Sale Price
